At present, the demand for fume purification equipment is growing. Many consumers don't know how to install or what products they need to buy when they buy the equipment, so let's popularize it for everyone. What equipment is needed to build a fume purification equipment system?

请看下面的介绍，您可以清楚地了解到油烟净化设备系统的内外组合结构。济南排气管厂家的油烟净化器系统由以下六种结构组成:

Please see the introduction below, you can clearly understand the internal and external combination structure of the fume purification equipment system. The oil fume purifier system of Jinan exhaust pipe manufacturer consists of the following six structures:

收集罩用于收集厨房灶具上的烟灰，通常安装在灶具的顶部。建议烟气收集口到气源的距离为0.8 - 1 m，上盖口的吸入速度一般设置为0.25 - 0.5 m/s。设计师或工程师必须根据厨房的大小来决定购买的时钟的大小。

The collection hood is used to collect the ash on the kitchen stove, which is usually installed on the top of the stove. It is recommended that the distance from the flue gas collection port to the gas source be 0.8 - 1 m, and the suction speed of the upper cover port be generally set as 0.25 - 0.5 m / s. The designer or engineer must decide the size of the purchased clock according to the size of the kitchen.

通风管道用于连接油烟净化设备系统中的所有设备并输送排烟。通风管道水平段不宜过长，更好在15米以内，且坡度应大于2%。为了方便将来的清洁和维护，您可以选择在水平部分的末端连接一个union。

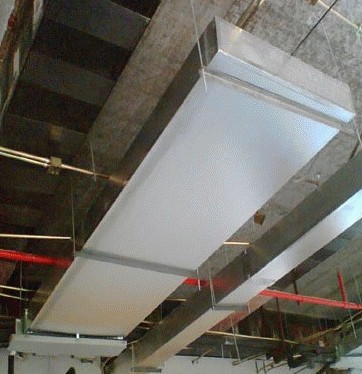

The ventilation pipe is used to connect all the equipment in the oil fume purification equipment system and convey smoke. The horizontal section of the ventilation pipe should not be too long, preferably within 15 meters, and the slope should be greater than 2%. To facilitate future cleaning and maintenance, you can choose to connect a union at the end of the horizontal section.

油烟净化设备这是目前市场上的油烟净化设备，其工作原理是当油烟废气经过高压静电场，油烟废气粒子与电子接触并充电，经电场吸附。用于净化排烟废气的净化设备，减少污染气体的排放。由于国内有传统的餐饮单位需要安装清洁的油烟净化设备，并规定了油烟净化设备的排放浓度和净化效率，餐饮单位必须根据您的实际情况选择油烟净化设备。按炉头风量为4000风量进行计算匹配。

The oil fume purification equipment is the most popular oil fume purification equipment in the market at present. Its working principle is that when the oil fume and exhaust gas pass through the high-voltage electrostatic field, the oil fume and exhaust gas particles contact with the electron and charge, and finally absorb by the electric field. Purification equipment used to purify exhaust gas and reduce the emission of pollutants. As there are traditional catering units in China that need to install clean fume purification equipment and stipulate the emission concentration and purification efficiency of fume purification equipment, catering units must select fume purification equipment according to your actual situation. It is calculated and matched according to 4000 air volume of furnace head.

紫外线除臭设备用于净化油烟气味，减少恶臭气体的排放。对于一些生产车间或餐饮单位产生的辛辣气味，如果油烟净化设备不能完全净化异味气体，则需要借助附加气味灯来去除异味设备来净化异味。选择抽油烟机的风量可以小于紫外线的风量来去除异味，因为抽油烟机本身也有一定的异味净化功能。另外，紫外线去除异味的设备应安装在通风净化设备的后面。目前，常用的烟气除尘设备有:紫外线去除设备、活性炭净化设备。

Ultraviolet deodorization equipment is used to purify the smell of oil smoke and reduce the emission of odor gas. For the pungent odor produced by some production workshops or catering units, if the fume purification equipment can not completely purify the odor gas, additional odor lamp is needed to remove the odor equipment to purify the odor. The air volume of the range hood can be less than that of the ultraviolet ray to remove the peculiar smell, because the range hood itself has certain odor purification function. In addition, UV odor removal equipment shall be installed behind the ventilation and purification equipment. At present, the commonly used flue gas dust removal equipment are: UV removal equipment, activated carbon purification equipment.

风机是用来从通风管道排出废气，提供抽气的动力设备。排气速度不得低于8米/秒。否则，煤烟的缓慢流动会导致煤烟粘在烟囱上，但不宜太快。风速过快会导致粉尘净化器净化不完整，不符合规范要求，影响烟尘净化效率。

The fan is used to exhaust the exhaust gas from the ventilation pipe and provide the power equipment for air extraction. The exhaust speed shall not be less than 8 m / s. Otherwise, the slow flow of soot will cause soot to stick on the chimney, but not too fast. Too fast wind speed will lead to incomplete purification of dust purifier, which does not meet the specification requirements, and affects the efficiency of dust purification.

引擎盖用于阻止排气口排出的废气，并防止废气直接排出。当准备烟净化系统在初始阶段,建筑结构设计人员或工程公司和其他有关人员应该清楚地了解网站的条件和澄清每个设备的实际操作参数,包括操作和风量优化烟尘净化系统的性能。

The engine hood is used to prevent the exhaust gas from the exhaust port and prevent the exhaust gas from discharging directly. When preparing the smoke purification system in the initial stage, the architectural structure designer or engineering company and other relevant personnel should clearly understand the conditions of the website and clarify the actual operation parameters of each equipment, including operation and air volume optimization of the performance of the smoke purification system.
