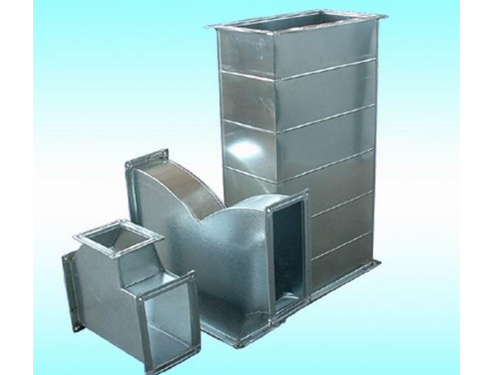

1、 Material requirements

1、各类板材、管材等应有质量证明文件(包括出厂合格证、质量合格证明及检测报告等)和产品清单。

1. All types of plates, pipes, etc. should have quality certification documents (including factory certificates, quality certificates, and inspection reports) and product lists.

2、风管成品不允许有变形、扭曲、开裂、孔洞、法兰脱落、开焊、漏铆、漏打螺栓孔等缺陷。

2. The finished air duct is not allowed to have defects such as deformation, distortion, cracking, holes, flange detachment, welding, missing riveting, missing bolt holes, etc.

3、安装的阀体消声器、罩体、风口等部件应检查调节装置是否灵活，消声片、油漆层有无损伤。

3. The installed valve body muffler, hood, air outlet and other components should be checked for flexibility in the adjustment device, and for damage to the muffler and paint layer.

4、安装使用的材料：吊杆、螺栓、螺母、垫圈、垫料、密封条、自攻螺钉、拉铆钉、各种帆布、无纺布、膨胀螺栓等应符合产品质量要求。

4. The materials used for installation: suspension rods, bolts, nuts, washers, gaskets, sealing strips, self tapping screws, rivets, various canvas, non-woven fabrics, expansion bolts, etc. should meet the product quality requirements.

风管板材厚度规格要求：

Thickness specification requirements for air duct plate:

二、安装要求

2、 Installation requirements

1、按风管的线找出吊杆敷设位置，单吊杆在风管的线上，双吊杆可以按托盘的螺孔间距或风管的线对称安装。

1. Find the laying position of the suspension rod according to the centerline of the air duct. A single suspension rod is located on the centerline of the air duct, and a double suspension rod can be symmetrically installed according to the screw hole spacing of the tray or the centerline of the air duct.

2、吊杆根据吊件形式，可以焊在吊件上，也可挂在吊件上，焊接后应涂防锈漆。

2. The suspension rod can be welded to or hung on the suspension component according to the form of the suspension component. After welding, it should be coated with anti rust paint.

当风管较长需要安装一排支架时，可先把两端安好，然后以两端的支架为基准，用拉线法找出中间支架的标高进行安装。

When a long air duct requires the installation of a row of brackets, the two ends can be installed first, and then the elevation of the middle bracket can be found using the wire drawing method based on the brackets at both ends for installation.

3、立管管卡安装时，应先把更上面的一个管件固定好，再用线锤在处吊线，下面的管卡即可按线进行固定。

3. When installing the riser pipe clamp, the top pipe fitting should be fixed first, and then a wire hammer should be used to hang the line at the center. The lower pipe clamp can be fixed according to the line.

4、风管支吊架间距如无设计要求时，对不保温风管应符合下表的要求。对于保温风管的支、吊架间距无设计要求时，按下表间距要求值乘以0.85。螺旋风管的支、吊架间距可以适当增加。

4. If there are no design requirements for the spacing between air duct supports and hangers, non insulated air ducts should comply with the requirements in the table below. When there are no design requirements for the spacing between the supports and hangers of insulated air ducts, multiply the required spacing value in the following table by 0.85. The spacing between the supports and hangers of the spiral air duct can be appropriately increased.

支、吊架间距

Spacing between supports and hangers

1、支吊架不得安装在风口、阀门检查孔处，以免妨碍操作。吊架不得直接吊在法兰上。

1. Supports and hangers should not be installed at air vents or valve inspection holes to avoid hindering operation. The hanger shall not be directly hung on the flange.

2、保温风管不能直接与支吊架接触，应垫上坚固的隔热材料，其厚度与保温风管厚度相同，防止产生“冷桥”。

2. The insulated air duct should not be in direct contact with the supports and hangers, and should be padded with sturdy insulation material with the same thickness as the insulated air duct to prevent the formation of a "cold bridge".

3、聚氯吞烯风管也与钢板风管一样采用支、吊托架，但一般以吊架为主，支架间距按下表的要求制作安装，但需做好以下几点：

3. Polychloroprene air ducts also use support and suspension brackets, similar to steel plate air ducts, but generally use suspension brackets as the main method. The spacing between brackets is made and installed according to the requirements of the table, but the following points need to be done well:

注：1.当支管较长时，则应在靠近干管的一端设置一支架。

Note: 1. When the branch pipe is long, a bracket should be set at one end near the main pipe.

2.支架的抱箍制作应与风管留有一定间隙，便于风管伸缩。

2. The hoop of the bracket should be made with a certain gap left between it and the air duct to facilitate the expansion and contraction of the air duct.

风管排列安装

Air duct arrangement and installation

法兰连接：

Flange connection:

为保证法兰接口严密性，法兰之间应有垫料。在无特殊要求的情况下，法兰垫料按下表选用。

To ensure the tightness of the flange interface, there should be padding between the flanges. In the absence of special requirements, flange gasket materials should be selected according to the following table.

法兰垫料材质的选用

Selection of flange gasket material

风管排列无法兰连接

Air duct arrangement without flange connection

抱箍式连接：主要用于钢板圆风管和螺旋风管连接，先把每一管段的两端轧出鼓筋，并使其一端缩为小口。安装时按气流方向把小口插入大口，外面用钢制抱箍将两端的鼓箍抱紧连接，用螺栓穿在耳环中间固定拧紧。

Hoop type connection: mainly used for connecting steel plate circular air ducts and spiral air ducts. First, roll out bulging ribs at both ends of each pipe section and shrink one end into a small opening. During installation, insert the small opening into the large opening in the direction of the airflow, and use steel clamps to tightly connect the drum clamps at both ends. Finally, use bolts to thread them in the middle of the earrings and tighten them.

插接式连接：主要用于矩形或圆形风管连接。先制作连接管，然后插入两侧风管，再用拉铆钉将其紧密固定。

Plug in connection: mainly used for rectangular or circular duct connections. First make the connecting pipe, then insert the air ducts on both sides, and then tightly fix them with rivets.

插条式连接：主要用于矩形风管连接。将不同形式的插条插入风管两端，然后压实。

Insert type connection: mainly used for rectangular duct connection. Insert different forms of inserts into both ends of the air duct and compact them.

软管式连接：主要用于风管与部件(如散热器、静压箱侧送风口等)的相连。安装时软管两端套在连接的管外，然后用特别软的卡箍把软管箍紧。

Flexible hose connection: mainly used for connecting air ducts to components such as radiators, plenum chamber side air supply outlets, etc. When installing, wrap both ends of the hose around the connected pipe and then tighten the hose with a particularly soft clamp.

风管安装就位

Air duct installation in place

根据现场情况，可以在地面连成一片的长度，用吊装的方法就位，也可以把风管一节一节地放在支架上，逐节连接。一般顺序是先干管，后支管。立管的安装一般是由下向上安装。安装就位后进行找平，找正，达到设计规定的要求。

According to the on-site situation, it can be connected to a length on the ground and placed in place by lifting, or the air duct can be placed on the bracket section by section and connected one by one. The general order is to start with the main pipe and then the branch pipe. The installation of vertical pipes is generally from bottom to top. After installation, level and align to meet the design requirements.
